Metered Features

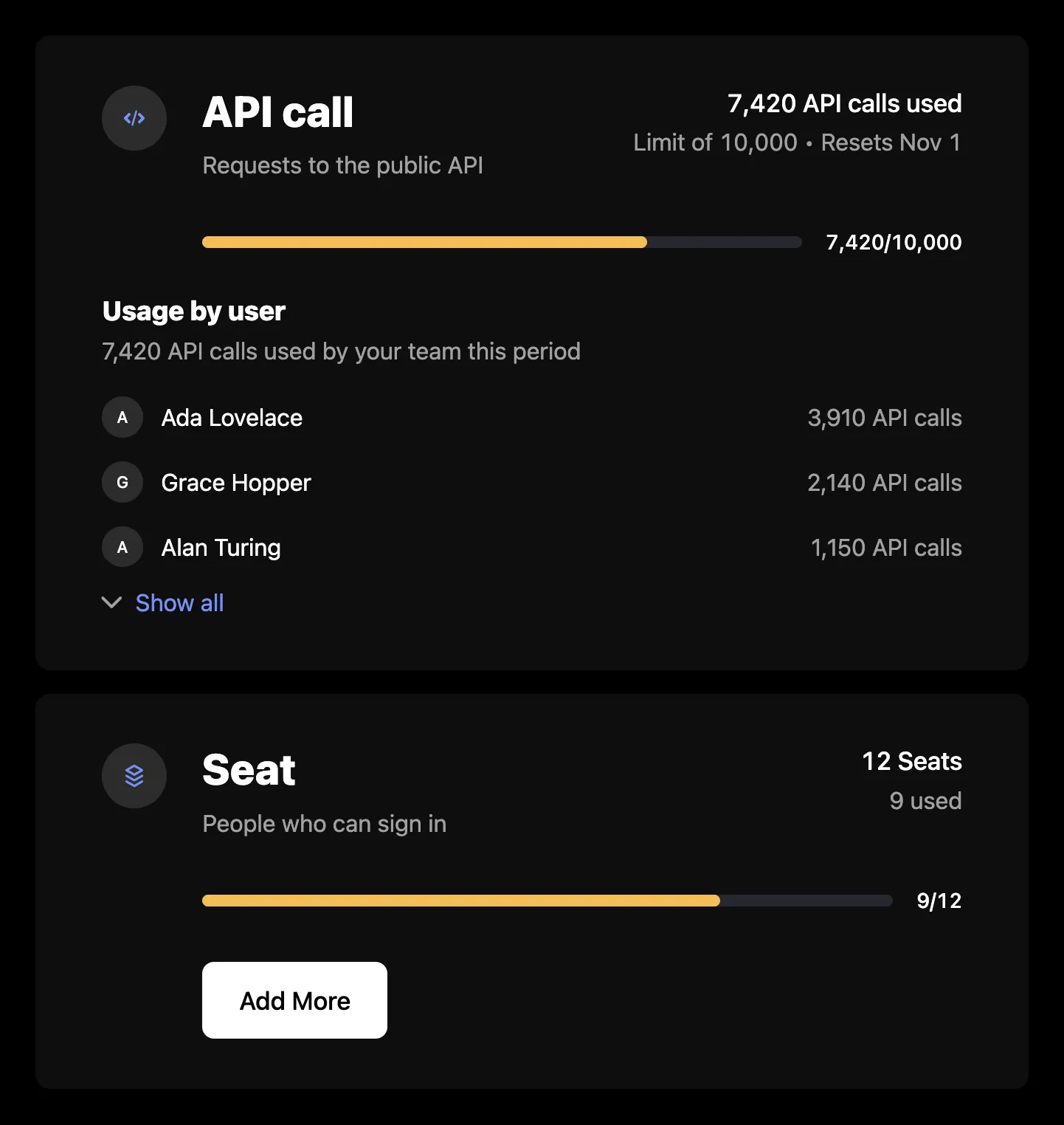

MeteredFeatures renders a card for each of the signed-in company’s event- and trait-based features: what it has used against its limit, what that costs, when usage resets, and who on the team used it. The cards load from the company billing API, so they need a session on the provider as described in the Drop-in components overview.

Usage

import { SchematicProvider } from "@schematichq/schematic-react";
import {
  MeteredFeatures,
  SchematicStyles,
} from "@schematichq/schematic-components/elements";
<SchematicProvider publishableKey={publishableKey} session={session}>
  <SchematicStyles />
  <MeteredFeatures addMoreUrl="/billing/seats" />
</SchematicProvider>;

Props

A company with no event- or trait-based feature renders nothing.

How each card reads

The headline says what is used, such as “1,300 API calls used”, or for a feature paid in advance, the quantity bought. The limit line under it depends on the price behavior: “1,000 included” for an overage’s soft limit, how much of a paid-in-advance quantity is in use, what pay-as-you-go usage has cost, the tier’s ceiling, a credit-burning feature’s credits per use, “Limit of 1,000”, or “No limit”. When the usage metric resets, “Resets Oct 1” follows it.

The meter fills by the share of the limit used. Its data-tone is ok, then warning from 60% and critical from 80%. Tiered features use the tier tone, and an overage feature switches to overage once usage passes its soft limit. Pay-as-you-go and credit-burning features have no meter, and neither does a feature with no usage figure or no limit to measure it against. The 1,300/2,000 label beside the meter is left out when the limit is zero.

An overage feature carries a footer with the price past the soft limit and what the usage beyond it costs. A tiered feature’s footer names the current tier, with a tooltip listing every tier’s price.

Add More

“Add More” shows on a feature paid for in advance, and only when you give it somewhere to go with onAddMore or addMoreUrl. The component has no checkout of its own, so the button reaches whatever purchase flow you point it at.

Usage by user

Each event-based feature lists who on the team used it this period, heaviest first, with the team’s total. It shows three people, then expands to the top 20 and reports the rest as a count. Usage sent without a user appears as “Unattributed” once the list is expanded. When this list fails to load, it shows its own message and “Try again” and the rest of the card stays.

Errors

A failure with nothing to show replaces the content with a short message and a “Try again” button. A 404 reads “Usage is not available for this account.”, because that status means the account is not enabled for the company billing endpoints. Every other failure, and a 404 under usage already loaded, reads “There was a problem retrieving your usage.” A refetch that fails with usage on screen is reported under it rather than replacing it. In development the component logs the underlying error to the console beside the copy.

Strings

Every word the component renders resolves through strings on the component, then on the provider, then the provider’s translate, then English. See Localization for how the chain works. These are the component’s own keys:

The per-user list’s keys, shared with Credit Usage:

The usage lines share usageUnits, usageTierUpTo, usageTierUnlimited, usagePerUse, usageResets, usageHardLimitLabel, usageHardLimit, usageTieredPricingLabel, usageTiersVolume, usageTiersGraduated, and the periodMonthShort, periodQuarterShort, and periodYearShort suffixes with Included Features, and several with Plan Manager and Pricing Table, so renaming one renames it wherever it appears.

Markup

This is what the component renders, for a host styling it without SchematicStyles. The root carries no card styling of its own; each feature is a schematic-card. Styling and theming lists the shared classes.

<div class="schematic-element schematic-metered-features" data-state="ready">
  <!-- with showHeader -->
  <div class="schematic-header">
    <h2 class="schematic-header__title">Usage</h2>
  </div>
  <ul class="schematic-metered-features__list">
    <li class="schematic-card schematic-metered-features__feature">
      <div class="schematic-metered-features__main">
        <span class="schematic-metered-features__icon">
          <i class="schematic-icon schematic-icon--…" aria-hidden="true"></i>
        </span>
        <div class="schematic-metered-features__body">
          <div class="schematic-metered-features__top">
            <div class="schematic-metered-features__title">
              <h3 class="schematic-metered-features__name">API calls</h3>
              <p class="schematic-muted">…</p>
            </div>
            <div class="schematic-metered-features__figures">
              <span class="schematic-metered-features__headline">1,300 API calls used</span>
              <span class="schematic-muted schematic-metered-features__limit">Limit of 2,000 • Resets Oct 1</span>
            </div>
          </div>
          <div class="schematic-metered-features__meter">
            <!-- .schematic-meter--warning, --over, --tier, or --overage by tone -->
            <div class="schematic-meter schematic-meter--warning" role="meter" data-tone="warning" aria-valuemin="0" aria-valuemax="2000" aria-valuenow="1300">
              <div class="schematic-meter__fill" style="width: 65%"></div>
            </div>
            <span class="schematic-metered-features__meter-label">1,300/2,000</span>
          </div>
          <!-- a feature paid in advance; a <button> with onAddMore, an <a> with addMoreUrl -->
          <button class="schematic-cta schematic-metered-features__add-more">Add More</button>
        </div>
      </div>
      <!-- event-based features: the per-user list, as in Credit Usage -->
      <div class="schematic-usage-by-user">…</div>
      <!-- overage and tiered features -->
      <div class="schematic-metered-features__price-details">
        <span class="schematic-metered-features__price-label">
          Tier: 1–1,000
          <!-- a tiered feature: the tooltip listing every tier -->
          <span class="schematic-tooltip">
            <button class="schematic-tooltip__trigger" aria-label="Tiered pricing" aria-describedby="…">
              <i class="schematic-icon schematic-icon--info-rounded" aria-hidden="true"></i>
            </button>
            <span class="schematic-tooltip__content" id="…" role="tooltip">
              <span class="schematic-tiers">
                <dl class="schematic-tiers__list">
                  <div class="schematic-tiers__tier">
                    <dt class="schematic-tiers__range">1–1,000</dt>
                    <dd class="schematic-tiers__price">$0.01<sub>/API call</sub></dd>
                  </div>
                </dl>
                <span class="schematic-tiers__mode">Tiers apply progressively as quantity increases.</span>
              </span>
            </span>
          </span>
        </span>
        <span class="schematic-metered-features__price-cost">$10.00</span>
      </div>
    </li>
  </ul>
</div>

An icon that is not a schematic-icons glyph name, such as an emoji, renders as text inside <i class="schematic-icon">. The meter’s warning tone adds schematic-meter--warning, critical adds schematic-meter--over, and tier and overage add schematic-meter--tier and schematic-meter--overage. While loading, the root carries data-state="pending" and aria-busy="true", with a visually hidden schematic-hidden loading label and a schematic-skeleton: a heading bar when showHeader is set, then two rows, each with a name and a usage cell. On a failure with nothing to show, the root carries data-state="error" and holds a schematic-status row.

Build it yourself

useFeatureUsage returns the same rows Included Features reads, so a page showing both makes one request, and useFeatureUserUsage(featureId) returns one feature’s usage by user. deriveMeteredFeatures keeps the event and trait features and turns each into its headline, limit line, reset date, meter, and price details.
